CPX 2X2 ALO7 SWW7 M4 - FRAME LED Lay-in by Lithonia Lighting®
Description
Purchasing Quantities
1
4
Specifications
6.7lb
24.5mm
24.2mm
2628H5
For Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Lithonia Lighting
USA
VN
Specification Sheet
Instruction/Installation Manual
00193048542806
16999957
INDOOR TROFFERS 120TO277V 50000HRS

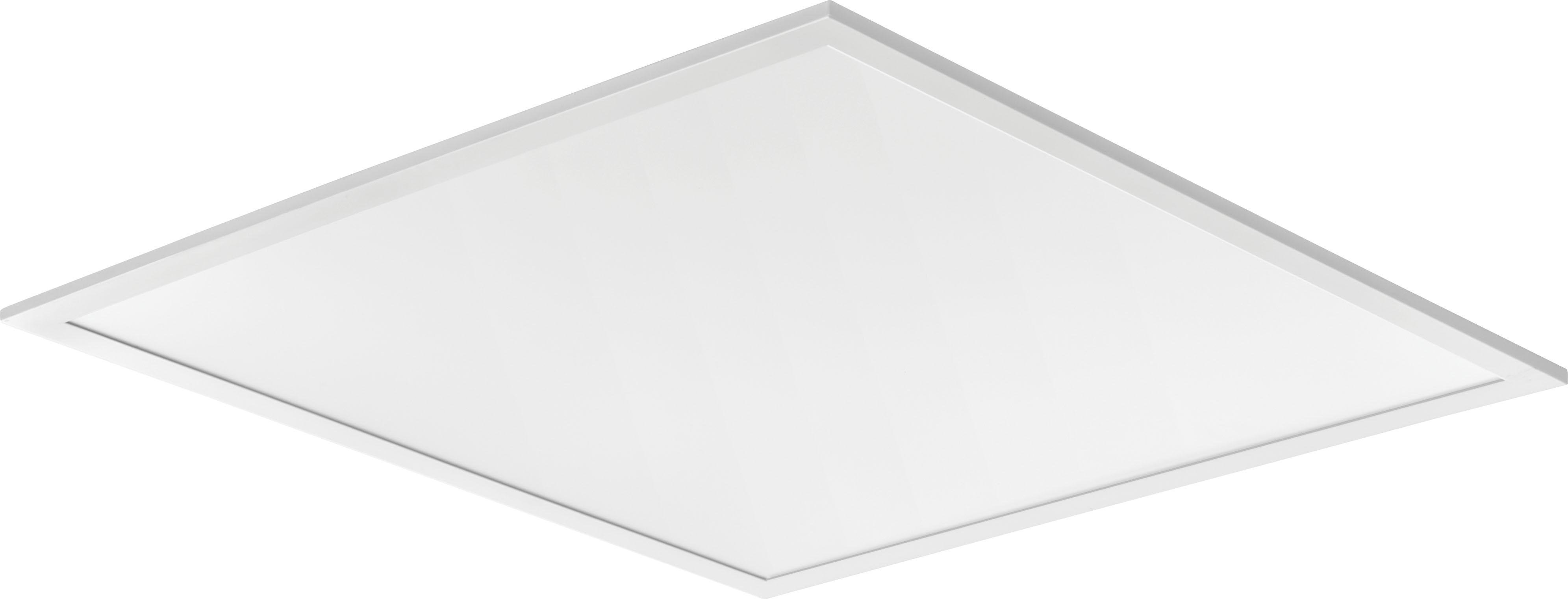

The 2 ft x 2 ft CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price
The smooth, even lens projects a crisp and clean aesthetic
CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects
TECHNOLOGY - Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 9 potential configurations within one fixture, using two switches
ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
DIMMING - 0-10 V driver for dimming down to 10 percent
HOURS OF LIFE - Greater than 70 percent LED lumen maintenance at 50,000 hr (L70>50,000)
INSTALLATION - can be recessed, suspended or surface box mounted with additional kit
BATTERY - Field-installable LED emergency driver (PS1055CP) sold separately
Lithonia Lighting® CPX 2X2 ALO7 SWW7 M4 CPX LED Flat Panel, 120 to 277 V ; CPX2X2ALO7SWW7M4 ; 2628H5 ; 16999957 ; 2628H516999957 ; 193048542806 ; 193048542806 ; Indoor Troffers
Acuity Brands
IN
24.2000
IN
1
6.7000
LB
24.5000
IN
CPX 2X2 ALO7 SWW7 M4 ; CPX2X2ALO7SWW7M4 ; 2628H5 ; 16999957 ; 2628H516999957 ; 193048542806 ; 19304854280 ; 00193048542806
https://youtu.be/eRlXWCX93UQ
Lithonia Lighting
LED RECESSED ARCHITECTURAL & SPECIFICATION LIGHTING
Average Life
hrs
50000
Color Rendering Index (CRI)
80
Color Temperature
K
3500/4000/5000
Dimensions
1.7 in H x 24 in W x 24 in L
Lumens
Lumens
4212
Mounting Type
Recessed/Surface/Suspended
Series
CPX
Type
LED Flat
Voltage Rating
V
120 To 277
