CSS L48 ALO3 MVOLT SWW3 80CRI - CSS Contractor LED Single Strip Light
Description
Specifications
4.82lb
2.75mm
2.88mm
49.25mm
https://image.img360.acuitybrands.com/Industrial/CSS%20non%20illuminated/CSS%20non%20illuminated.spin
16084911

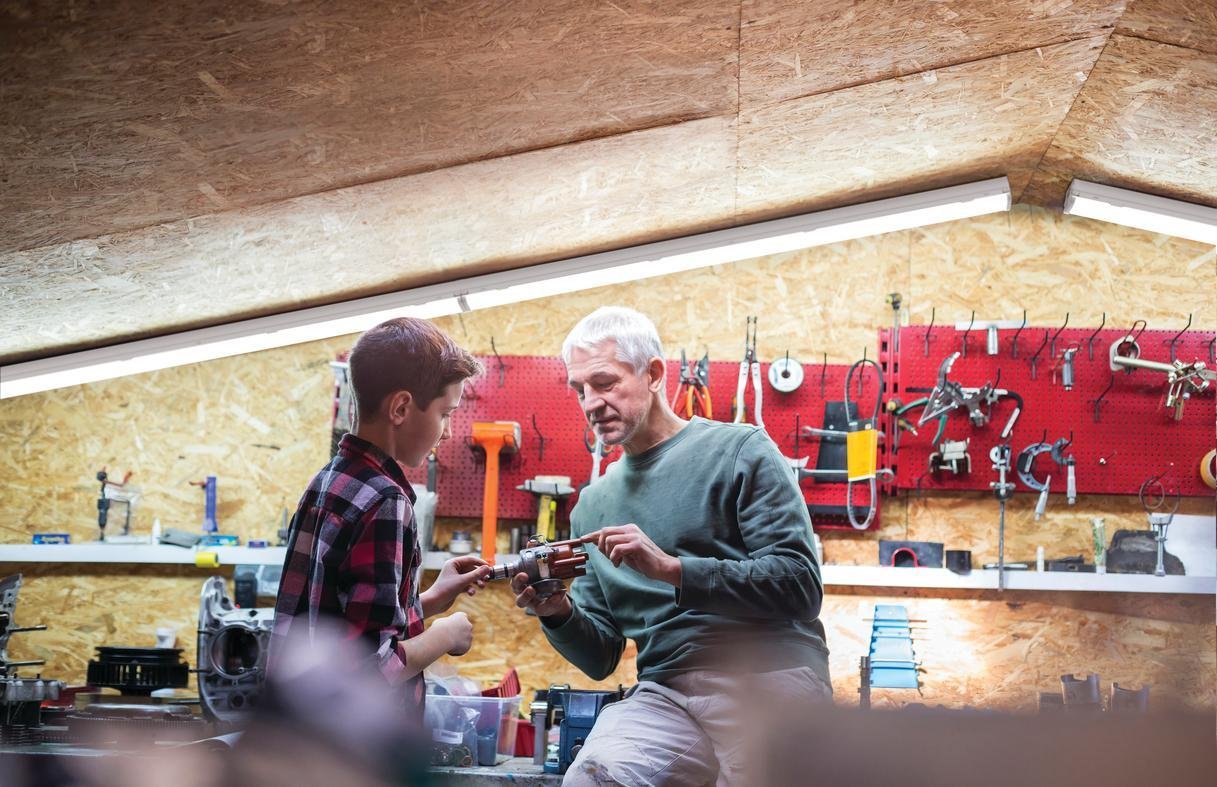

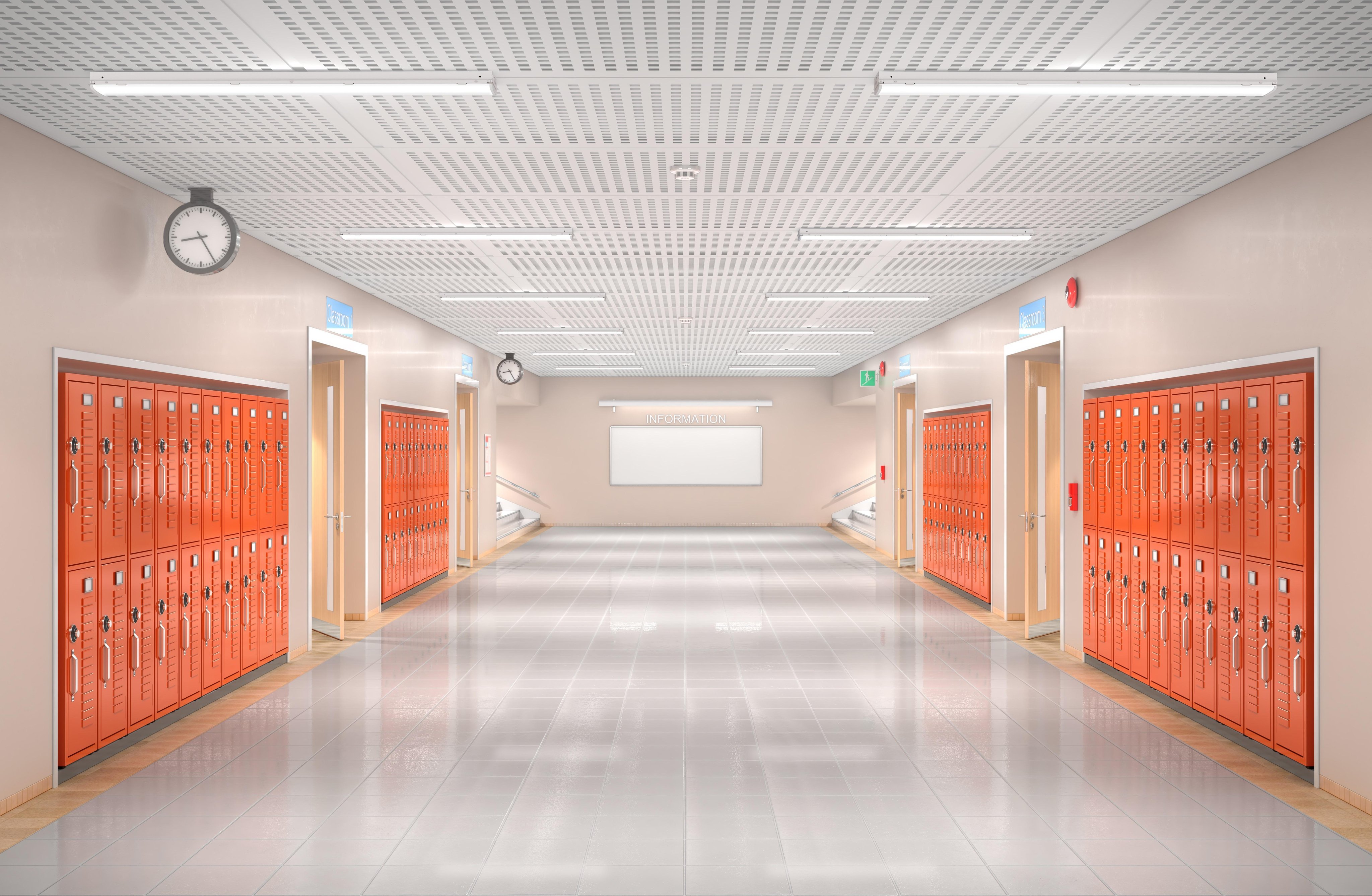

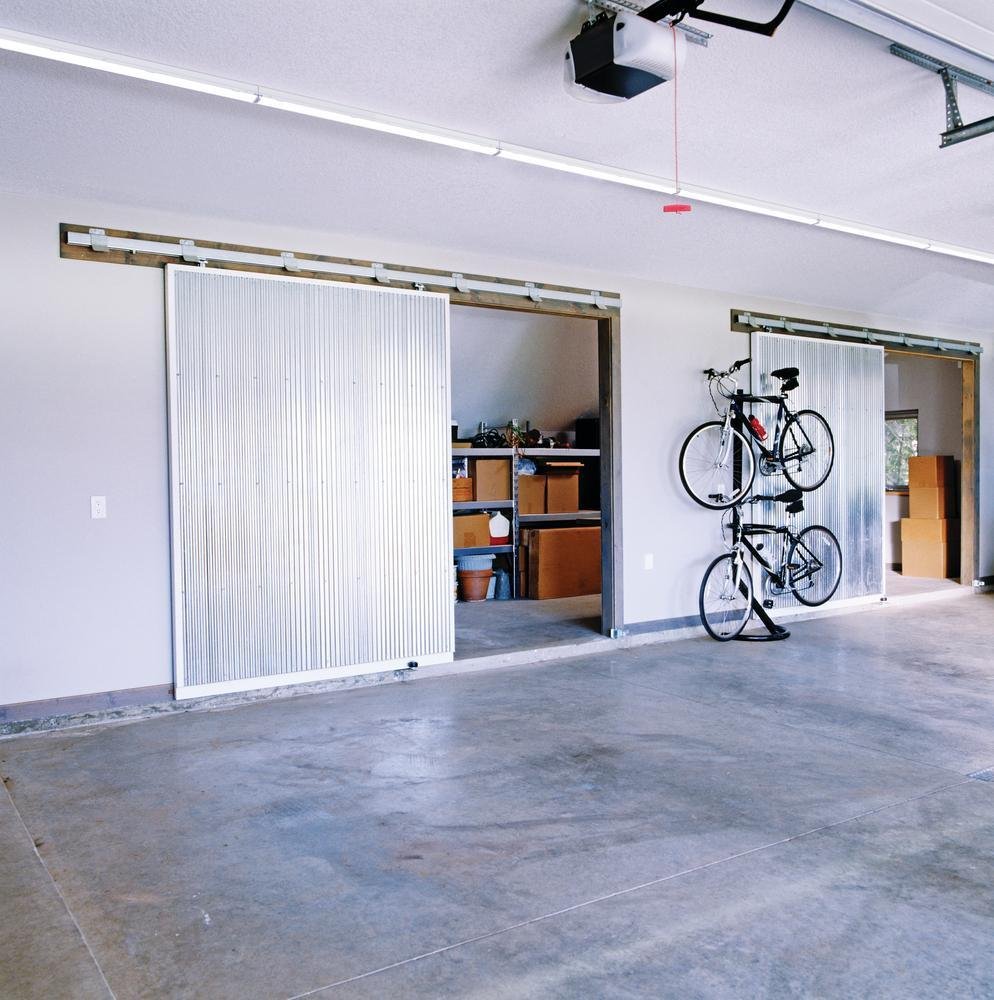

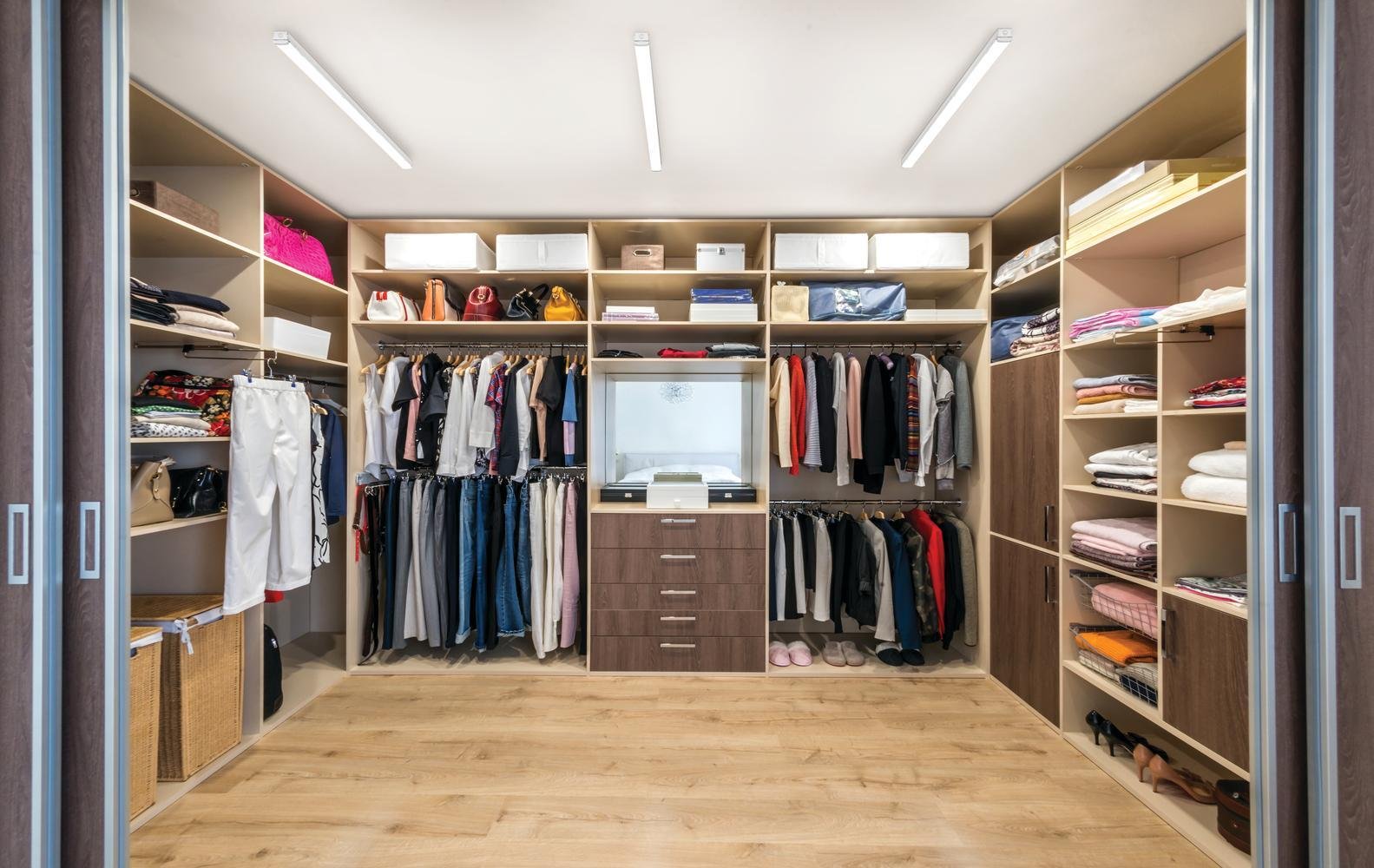

Garage, Laundry Room, Locker Room, Tight Spaces, Task Lighting, Restrooms, Under/Over Cabinet and Storage Closets
Lithonia Lighting
USA
MX
Specification Sheet
00193048852677
16084911
LIGHT STP 2 LED 55/72/88W 120 TO 277V 80
Replaces 4 ft linear strip lights using only 125 lumens per watt and delivering over 4000 lumens
MVOLT and dimmable, LED strip lights have 0-10V dimming capability which allows you to control how much light is needed
Minimum starting temperature at -40 deg F (-40 deg C), Maximum ambient operating temperature of 95 deg F (35 deg C)
LEDs provide 80 color rendering index (CRI), color temperature range from 3500K a neutral white to 5,000K a daylight color temperature
Compact-design channel and cover are formed from code-gauge, cold-rolled steel
Acuity Brands
2.7500
IN
49.2500
IN
1
4.8200
LB
2.8800
IN
CSS L48 ALO3 MVOLT SWW3 80CRI ; CSSL48ALO3MVOLTSWW380CRI ; 16084911 ; 193048852677 ; 19304885267 ; 00193048852677
https://www.youtube.com/watch?v=sK4hbrbhvsw&feature=youtu.be
Lithonia Lighting
LED SURFACE ARCHITECTURAL & SPECIFICATION LIGHTING
Average Life
HR
80000
Light Color
White
Lighting Technology
Adjustable Lumen
Lumens
Lumens
3247 to 5150
Mounting Type
Surface
Number of Lamps
2
Series
CSS
Type
Light Duty Dimmable
Voltage Rating
V
120 To 277
Color Rendering Index (CRI)
80
Color Temperature
K
3500/4000/5000
Dimensions
4 ft L x 2.62 in W x 2.22 in H
Fixture Wattage
W
55/72/88
Housing Finish
Baked Enamel
Housing Material
Cold Rolled Steel
Lamp Type
Led
Lens Type
Acrylic
